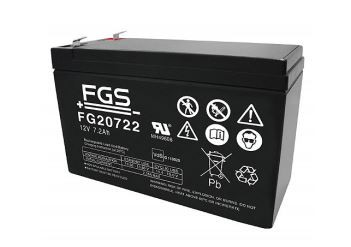

FGS 12V 7,2AH Echolotbatterie

FGS 12V 7,2AH Echolotbatterie
17,99 € *

inkl. MwSt. zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 2-4 Werktage

  • fgs-20722
12Volt 7.2Ah Specifications Nominal Voltage(V) 12V Nominal Capacity 20 hour rate (0.36A to... mehr
Produktinformationen "FGS 12V 7,2AH Echolotbatterie"

12Volt 7.2Ah Specifications Nominal Voltage(V) 12V Nominal Capacity 20 hour rate (0.36A to 10.50V) 7.2Ah 10 hour rate (0.684A to 10.50V) 6.84Ah 5 hour rate (1.224A to 10.20V) 6.12Ah 1 C (7.2A to 9.60V) 4.08Ah 3 C (21.6A to 9.60V) 2.88Ah Weight Approx. 2.4kg(5.28Lbs.) Internal Resistance (at 1KHz) Approx. 22 mΩ Dimensions mm(inch) Maximum Discharge Current for 5 seconds: 108A Charging Methods at 25℃(77℉) Cycle use: Charging Voltage 14.4 to 15.0V Coefficient -5.0mv/℃/cell Maximum Charging Current: 2.16A Standby use: Float Charging Voltage 13.50 to 13.80V Coefficient -3.0mv/℃/cell Operating Temperature Range Charge -15℃(5℉) to 40℃(104℉) Discharge -15℃(5℉) to 50℃(122℉) Storage -15℃(5℉) to 40℃(104℉) Charge Retention (shelf life) at 20℃(68℉) 1 month 92% 3 month 90% 6 month 80% Case Material ABS (UL94 HB flame retardant ) Terminal F2 (Faston Tab 250)
